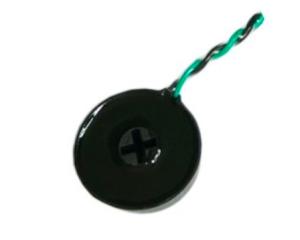

Anti - Magnetic 200A 3 Phase Current Transformer , Green Red Lead Wire Black Poxy DCT

Product Categories

Jiaxing Wisdom Electronic Tech Co., Ltd.

Contact Now

Brand Name : WSD

Model Number : WSD-729

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200000/day

Delivery Time : 14-21days

Packaging Details : Cartons / Pallets

Max current : 80-200A

Primary current : 5-10A

Secondary current : 2-5mA

Accuracy class0.1 : 0.1

DC immunity : Available

Anti-magnetic : Available

Contact Now

3 phase current transformer green red lead wire black poxy DCT with anti-magnetic 200A current transformer

 Suitable for high precision, small phase error requirments of three-phase electric energy meters

 More space in the meter can be saved with combined current transformer

 Linear output current, high precision

 Encapsulated with epoxy resion,with high insulation ability

 It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current	Max primary current	Rated secondary current	Turn ratio	Accuracy class	DC component	Shileding	Load resistance
I p(A)	I max(A)	I s(mA)	N	(%)	(%)	(T)	Rb
5	60	2	1:2500	0.05/0.1/0.2	±3%	unavailable	5Ω,10Ω,20Ω
5	60	2.5	1:2000	0.05/0.1/0.2
10	60	4	1:2500	0.05/0.1/0.2	±3%
10	60	5	1:2000	0.05/0.1/0.2
10	60	10	1:1000	0.1/0.2
5	80	2	1:2500	0.1/0.2	±3%
10	80	4	1:2500	0.1/0.2	±3%
10	100	4	1:2500	0.1/0.2	±3%



Working temperature			−40℃~ 85℃
Isolation voltage			4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance			≥1000MΩ
Operating temperature			50Hz~60Hz

Dimension:
