Long Busbar DC Resistance Mini Three Phase Transformer With Magnetic Shielding

Brand Name : WSD

Model Number : WSD-728-DT

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200000/day

Delivery Time : 14-21days

Packaging Details : Cartons / Pallets

Max current : 60-100A

Primary current : 5-10A

Secondary current : 2-5mA

Accuracy class : 0.1

Anti-magnetic : Available

DC immunity : Available

Contact Now

3 phase current transfromer with long busbar DC resistance Magnetic Shielding mini CT

 Suitable for high precision, small phase error requirments of three-phase electric energy meters
 More space in the meter can be saved with combined current transformer
 Linear output current, high precision
 Encapsulated with epoxy resion,with high insulation ability
 It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters

Rated primary current	Max primary current	Rated secondary current	Turn ratio	Accuracy class	DC component	Shileding	Load resistance
I p(A)	I max(A)	I s(mA)	N	(%)	(%)	(T)	Rb
1	100	0.4	1:2500	0.05/0.1	±3%	unavailable	5Ω,10Ω,20Ω
5	60	2	1:2500	0.05/0.1/0.2	±3%
5	60	2.5	1:2000	0.05/0.1/0.2
5	80	2	1:2500	0.05/0.1/0.2	±3%
10	60	4	1:2500	0.05/0.1/0.2	±3%
10	60	5	1:2000	0.05/0.1/0.2
10	60	10	1:1000	0.1/0.2
10	80	4	1:2500	0.1/0.2	±3%
20	100	10	1:2000	0.1/0.2
10	100	5	1:2000	0.1/0.2		300~500mT

Working temperature			−40℃~ 85℃
Isolation voltage			4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance			≥1000MΩ
Operating temperature			50Hz~60Hz

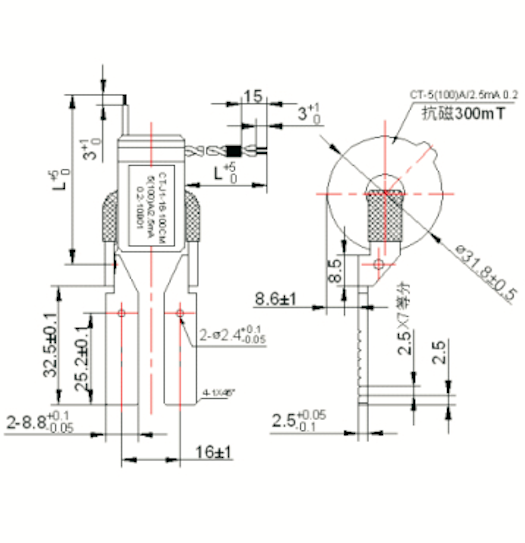

Dimension:

Long Busbar DC Resistance Mini Three Phase Transformer With Magnetic Shielding
